Checkpoint inspector

The execution detail page (/executions/{execution_id}) shows the full checkpoint history of a durable run as a vertical timeline. Each step collapses by default; expand any two adjacent rows to see a JSON state diff between them. A separate card below lists every cached @idempotent result for the execution.

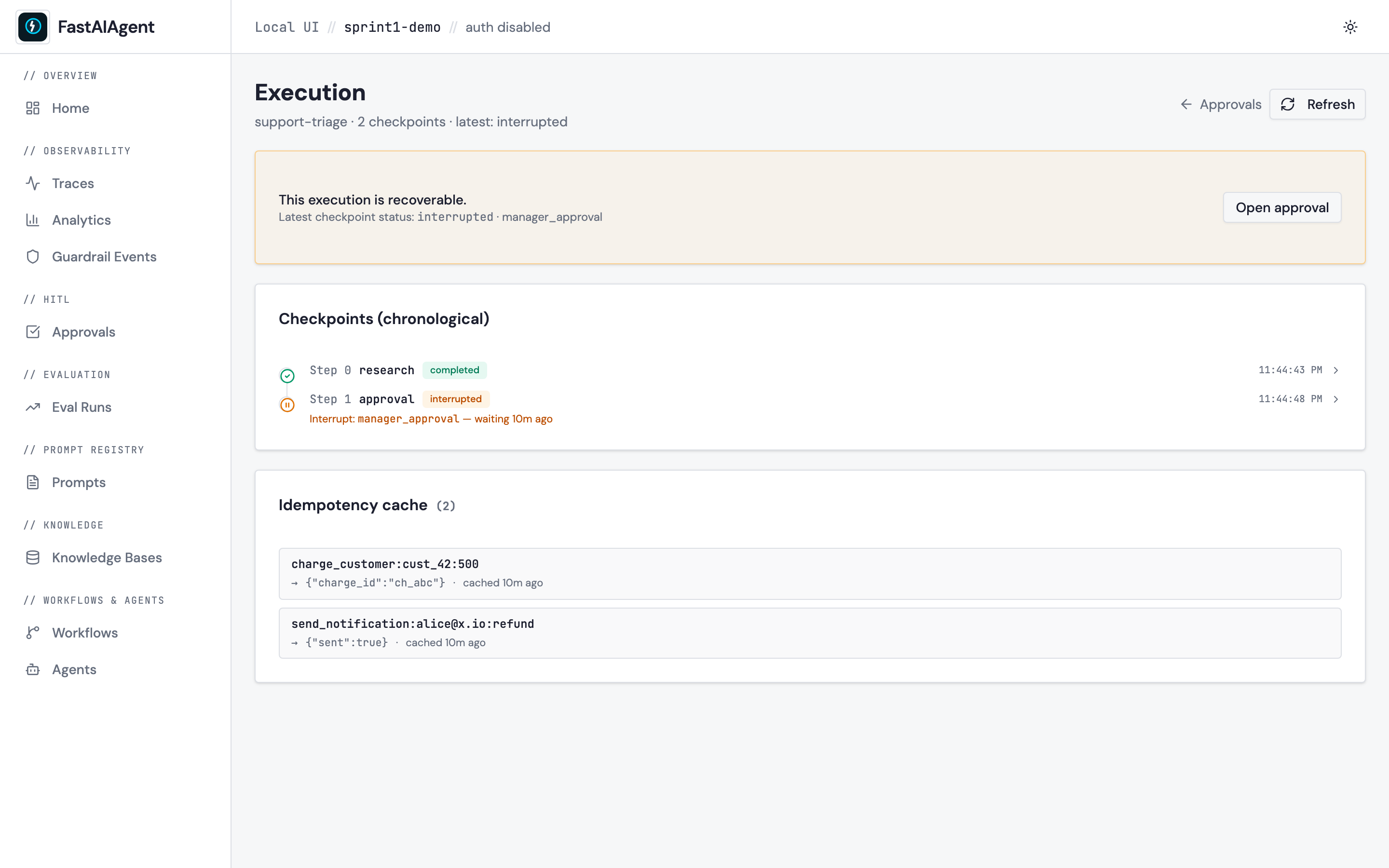

Timeline anatomy

Each row is one checkpoint:

• Status icon — green check (completed), amber pause (interrupted), red ✕ (failed), spinning loader (pending).
• Step number + node id — the chain node this checkpoint was written for. Step 0 research.
• Status pill — same color as the icon, redundantly text-labelled.
• Timestamp — local-time formatted on the right.
• Interrupt reason (interrupted only) — printed below the row with an "waiting Nm/h/d ago" age.
• Expand chevron — click the row to reveal state_snapshot, node_input, node_output, and interrupt_context panes.

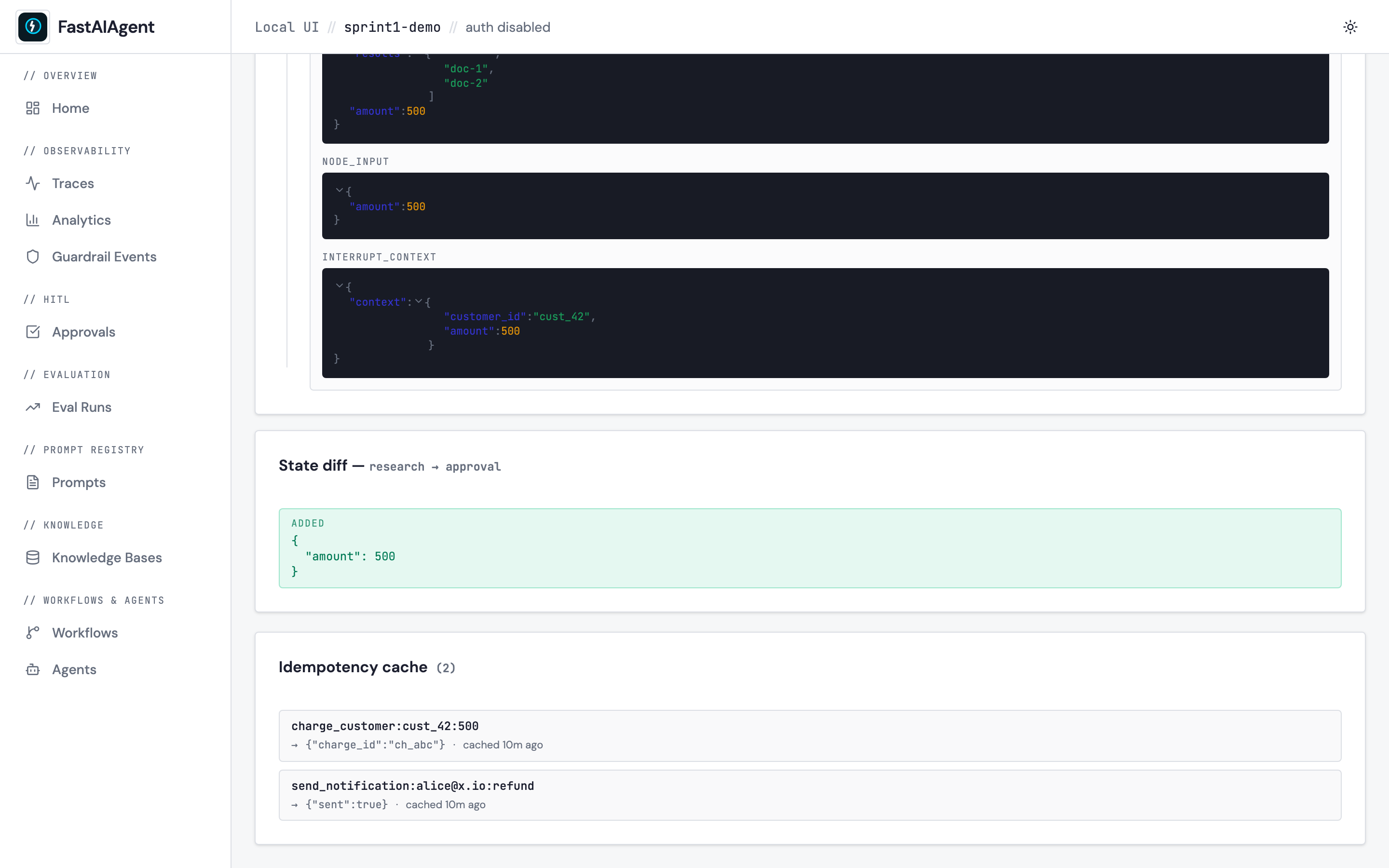

State diff

When two adjacent rows are expanded simultaneously, a State diff card lights up below the timeline:

The diff is key-level (Added / Changed / Removed) — most checkpoint state is a flat dict[str, Any], so the colored buckets give you the full picture without the noise of a structural diff library.

Resume

When the latest checkpoint is interrupted or failed, the page shows an amber "This execution is recoverable" callout at the top with an Open approval button that links to the matching /approvals/:id page. That existing page already wires Approve / Reject through POST /api/executions/{id}/resume, so the inspector doesn't reimplement the action — it just makes the entry point obvious.

Idempotency cache

Below the timeline, the Idempotency cache card lists every cached @idempotent call for the execution:

charge_customer:cust_42:500   →  {"charge_id":"ch_abc"}   cached 2h ago
send_notification:alice@x...  →  {"sent":true}            cached 2h ago

These are the calls that would be skipped on resume. Empty caches collapse to a one-line note.

Endpoints

• GET /api/executions/{id} — full checkpoint history (all the columns the timeline shows).
• GET /api/executions/{id}/idempotency-cache — cached @idempotent rows.
• POST /api/executions/{id}/resume — the existing resume endpoint; the inspector links to /approvals/{id} rather than calling it directly.

Where the screenshot comes from

Both screenshots above are captured by scripts/capture-sprint1-screenshots.sh against the seed in scripts/seed_ui_sprint1.py. The seed lays down a 2-step support-triage chain — research (completed) → approval (interrupted, waiting on manager_approval) — plus two cached @idempotent rows so the cache card has content. Run the example in examples/42_durability_hitl.py to reproduce the same view from a real chain.
