Route a Call Centre with the Decisions API

New in 1.84.0. This walkthrough builds a customer-support desk with three queues: complaints, product enquiries, and everything else. Every contact is routed to exactly one of them. The supervisor routes with OpenAI's Decisions API, which serves the model gpt-6-luna, and the workers are chat agents (gpt-5.1) with back-office tools.

The full scripts are 106_call_center_supervisor.py and 107_call_center_chain.py. Every output on this page comes from a live run.

zsh -lc 'python examples/106_call_center_supervisor.py --compare'   # needs OPENAI_API_KEY
zsh -lc 'python examples/107_call_center_chain.py'

Why the Decisions API, and not a chat call, should route

The first thing a support desk does with any contact is decide who owns it. That's a classification with a fixed set of answers, not a conversation.

A tool-calling supervisor (Supervisor(routing="tools"), the default) answers it with a chat model. The model reads the message, emits a delegate_to_<queue> tool call, waits for the worker, then writes its own final answer. That's the right shape when a supervisor has to plan: split a task, call several workers, combine the results. For routing it buys two extra chat turns, and nothing stops the model calling no tool at all.

Supervisor(routing="decisions") asks the question as a Choice instead. The answer is one of your queues, with a confidence, in a few hundred milliseconds, and the worker's reply goes back unchanged.

1. The workers

Each Worker is an ordinary Agent. Its description doubles as the router's option text, so write it the way you'd brief a new colleague on which queue owns what:

from fastaiagent.agent import Agent, Worker
from fastaiagent.llm import LLMClient
from fastaiagent.tool import FunctionTool

llm = LLMClient(provider="openai", model="gpt-5.1")

complaints = Worker(
    role="complaint",
    description=(
        "The customer is unhappy about something that already happened: a late, "
        "damaged or wrong order, a billing error, poor service, or a refund demand."
    ),
    agent=Agent(
        name="complaints",
        llm=llm,
        system_prompt="... apologise once, look up the order, open a case, offer what the returns policy allows ...",
        tools=[FunctionTool(name="lookup_order", fn=lookup_order),
               FunctionTool(name="open_case", fn=open_case)],
    ),
)
# products (search_catalog) and other (store_info, open_case) follow the same shape.

2. The decision supervisor

from fastaiagent.agent import Supervisor
from fastaiagent.llm import Predicate, Score

decider = LLMClient(model="gpt-6-luna")
desk = Supervisor(
    name="call-center",
    workers=[complaints, products, general],
    routing="decisions",
    router_llm=decider,
    routing_instructions="Which queue should handle this customer contact?",
    fallback_worker="other",        # refused or unsure → never guess a specialist
    routing_min_confidence=0.6,
    routing_questions={             # asked in the SAME request as the route
        "urgent": Predicate(instructions="The customer needs an answer today, or threatens to cancel, leave a bad review, or escalate."),
        "mood": Score(instructions="How upset is the customer?", levels=["Calm", "Frustrated", "Angry"]),
    },
    validate_outputs=True,          # review every reply before it goes out
    validation_mode="decisions",
    validation_llm=decider,
    validation_criteria="The agent's reply directly addresses what the customer asked and tells the customer the next step.",
)

result = desk.run("My order A1042 arrived with a cracked lamp base ... sort it out today or I'm cancelling.")

One decide() call answers three questions: which queue, is it urgent, and how upset is the customer. The worker receives the customer's message plus a note, [Supervisor routing note] urgent: yes (p=0.99); mood: Angry, so it can set its tone and priority. result.route records how the run was routed:

result.route.worker                                  # "complaint"
result.route.confidence                              # 0.99
result.route.answers.predicates["urgent"].probability  # 0.99
result.route.answers.scores["mood"].level            # "Angry"
result.route.latency_ms, result.route.cost_usd       # 486, 4.9e-05
result.route.reviews                                 # [0.90]

3. What it does

> My order A1042 arrived with a cracked lamp base. This is the second time — ...
  → complaint · confidence 0.99 · urgent 0.99 · mood Angry · routed in 486 ms ($0.000049)
  reply (3859 ms end to end, review 0.90):
  I'm really sorry this has happened to you twice ... I've opened a high-priority
  case for you: ID CS-2001 ... you can choose either: 1) A free replacement lamp,
  or 2) A full refund ...
> Does the Aurora desk lamp work with my phone charger? It's a 5V 2A USB-C one.
  → product_enquiry · confidence 0.99 · urgent 0.00 · mood Calm · routed in 164 ms
> What time do your phone lines open on Saturday?
  → other · confidence 1.00 · urgent 0.00 · mood Calm · routed in 170 ms
> Is the Orbit speaker compatible with Google Home, and when can I get one?
  → product_enquiry · confidence 0.99 · urgent 0.10 · mood Calm · routed in 191 ms
> Hi, I need some help please.
  → other · confidence 0.89 · urgent 0.00 · mood Calm · routed in 167 ms

The angry repeat complaint is flagged urgent, and its case opens at high priority. The vague "Hi, I need help" goes to the general queue, which asks a clarifying question.

4. Decisions routing vs tool-call routing

--compare runs the same tickets through both modes. Both run without review, so the comparison is like for like:

Ticket	routing="decisions"	routing="tools" (gpt-5.1)
Cracked lamp, repeat complaint	3.9 s → complaint	11.5 s → complaint
Lamp + USB-C charger	2.7 s → product_enquiry	5.1 s → product_enquiry
Saturday phone hours	2.0 s → other	5.2 s → other
Orbit speaker + Google Home	2.6 s → product_enquiry	7.7 s → product_enquiry
"Hi, I need some help"	1.8 s → other	1.4 s → answered itself

The routes agree, and decision routing is 2–3× faster end to end. The last row is the other half of the argument: the tool-calling supervisor skipped delegation and answered itself. A decision router always puts the contact in exactly one queue.

5. Review what the reviewer can judge

The review is one Decisions predicate over the customer's message and the worker's reply. The reviewer hasn't seen the order system or the catalogue, so don't ask it whether the facts are right. An early run with the criterion "complete, correct, and on-topic" scored good replies at 0.3–0.5. Each rejection re-ran the worker, and a re-run worker re-runs its tools: one retry opened a duplicate support case. Ask what can be judged from the two texts ("addresses what the customer asked and tells them the next step"), and the same replies score 0.54–0.97 with no retries.

6. The same desk as a Chain

When you'd rather draw the flow as a graph you can validate, diff and version, use a condition node with decision=:

from fastaiagent.chain import Chain
from fastaiagent.chain.node import NodeType
from fastaiagent.llm import Choice

chain = Chain("call-center", checkpoint_enabled=False)
chain.add_node(
    "triage",
    type=NodeType.condition,
    decision={
        "question": Choice(instructions="Which queue should handle this customer contact?",
                           options={"complaint": "...", "product_enquiry": "...", "other": "..."}),
        "input": "{{input.message}}",
        "llm": {"model": "gpt-6-luna"},
        "min_confidence": 0.6,
    },
)
chain.add_node("complaints", agent=complaints_agent)
chain.add_node("products", agent=products_agent)
chain.add_node("general", agent=general_agent)
chain.connect("triage", "complaints", label="complaint")
chain.connect("triage", "products", label="product_enquiry")
chain.connect("triage", "general", label="other")
chain.connect("triage", "general")   # default: refused or unsure

result = await chain.aexecute({"message": "Does the Aurora desk lamp work with my USB-C charger?"})
result.node_results["triage"]   # {"matched": "product_enquiry", "decision": {"confidence": 1.0, ...}}

> My order A1042 arrived with a cracked lamp base. Sort it out today or I'm cancelling.
  triage → complaint (confidence 1.00) → complaints  [3180 ms]
> Does the Aurora desk lamp work with my 5V 2A USB-C phone charger?
  triage → product_enquiry (confidence 1.00) → products  [2660 ms]
> What time do your phone lines open on Saturday?
  triage → other (confidence 0.94) → general  [3152 ms]
> Hi, I need some help please.
  triage → other (confidence 0.93) → general  [2302 ms]

chain.validate() refuses an option that has no edge, and chain.to_dict() is plain JSON.

Pick	When
Supervisor(routing="decisions")	You want urgency and mood handed to the worker, every reply reviewed, and result.route for analytics
Chain + decision node	The flow is a fixed graph you want to see, validate and version alongside other nodes
Supervisor(routing="tools")	The work is multi-step: split it, call several workers, combine

7. End to end in the Local UI

fastaiagent ui

Every screenshot below comes from a live run of examples 105–107, captured by scripts/capture-decisions-screenshots.sh.

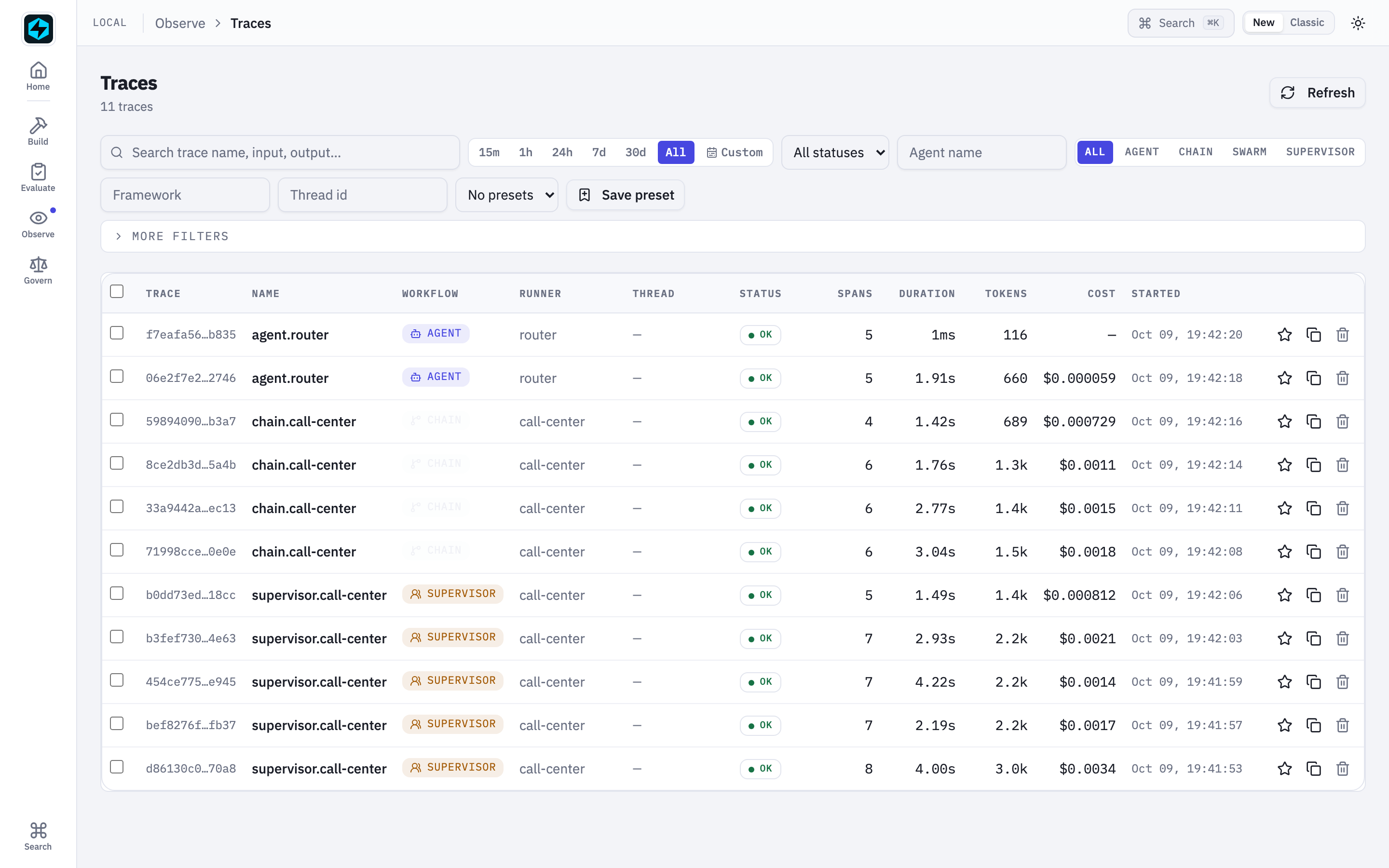

Every ticket is one trace

Each contact the desk handles is one supervisor.call-center trace (the SUPERVISOR badge), and each run of the Chain version is one chain.call-center trace. The two agent.router rows are example 105: a live run, and its recorded replay.

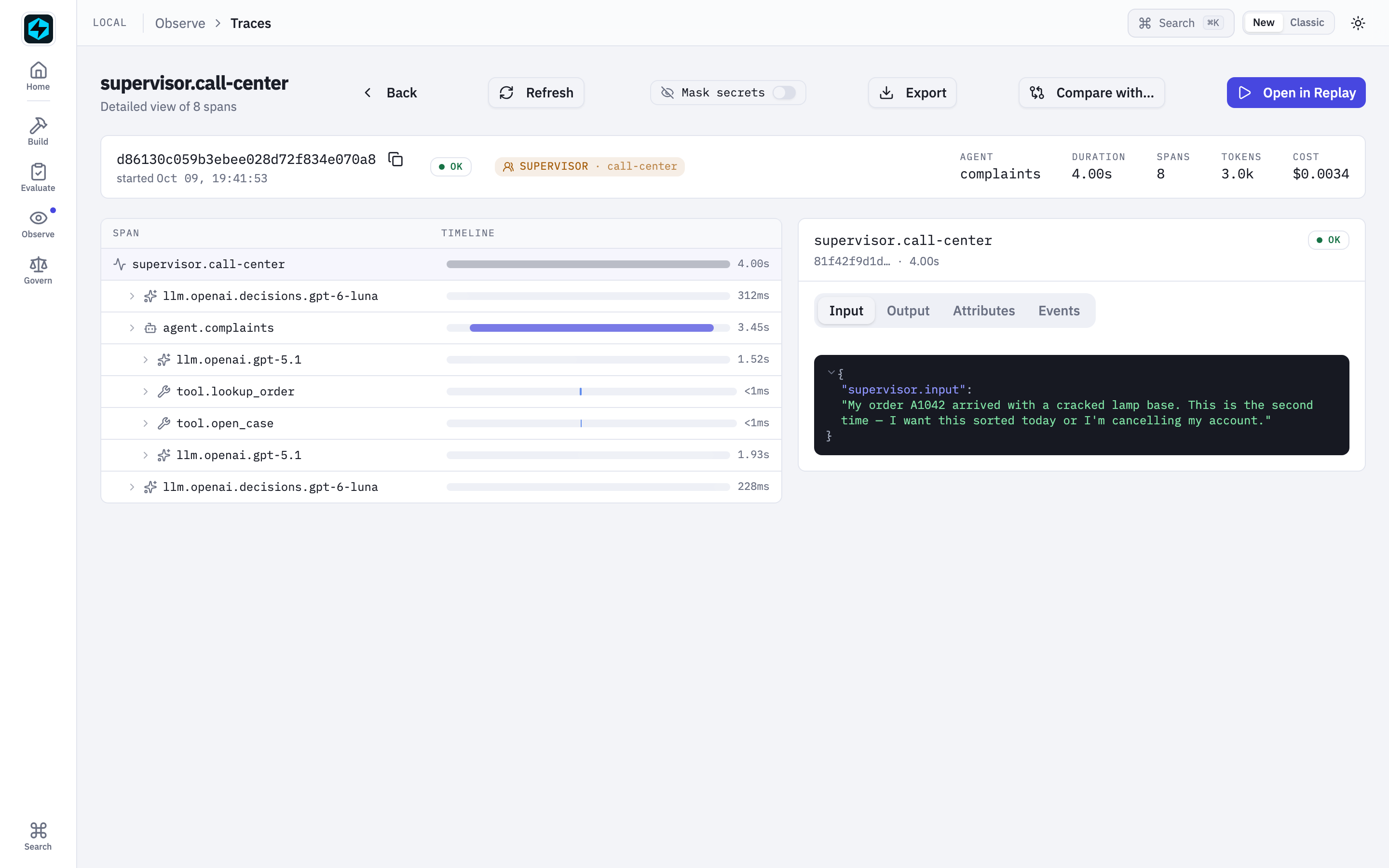

A routed ticket: route → worker → review

Open the angry repeat complaint. The tree reads top to bottom in the order the desk worked:

1. llm.openai.decisions.gpt-6-luna, the routing call: one Decisions API request that answered queue, urgency and mood.
2. agent.complaints, the gpt-5.1 worker. You can see its chat turns (llm.openai.gpt-5.1) and its tool calls (tool.lookup_order, tool.open_case).
3. llm.openai.decisions.gpt-6-luna again, the review of the reply.

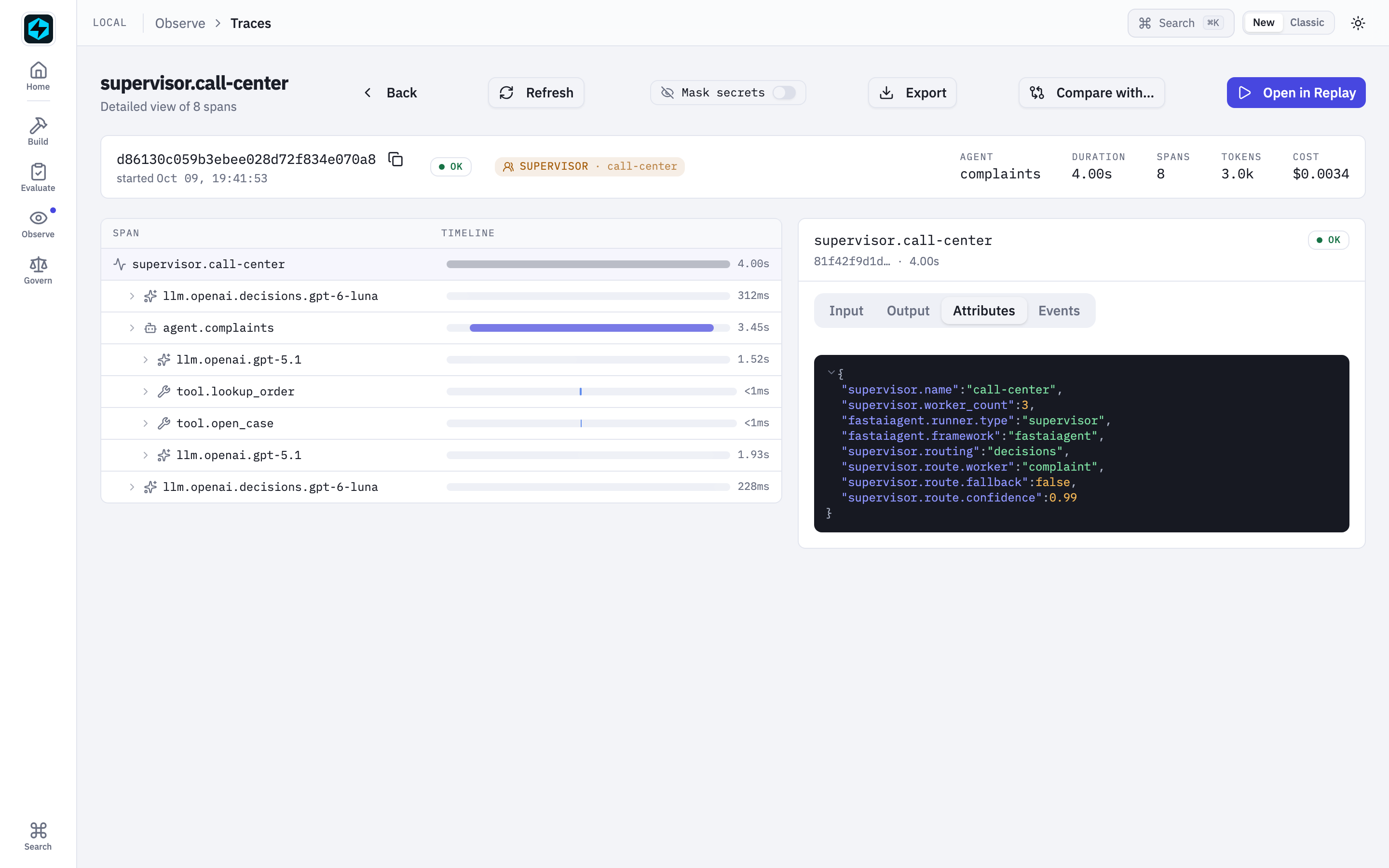

The route is on the supervisor's root span: supervisor.routing="decisions", supervisor.route.worker, .confidence and .fallback.

Inside one Decisions API call

Select the routing span and open Attributes. It's a standard OpenTelemetry GenAI span: gen_ai.operation.name="decisions", gen_ai.provider.name="openai", and gen_ai.request.model, plus the OpenInference keys (openinference.span.kind="LLM", llm.model_name). Below them are the evidence and the three questions it asked.

Further down the same panel are the answers, each with its probability distribution, the request id, the input-only token usage, and the call's cost.

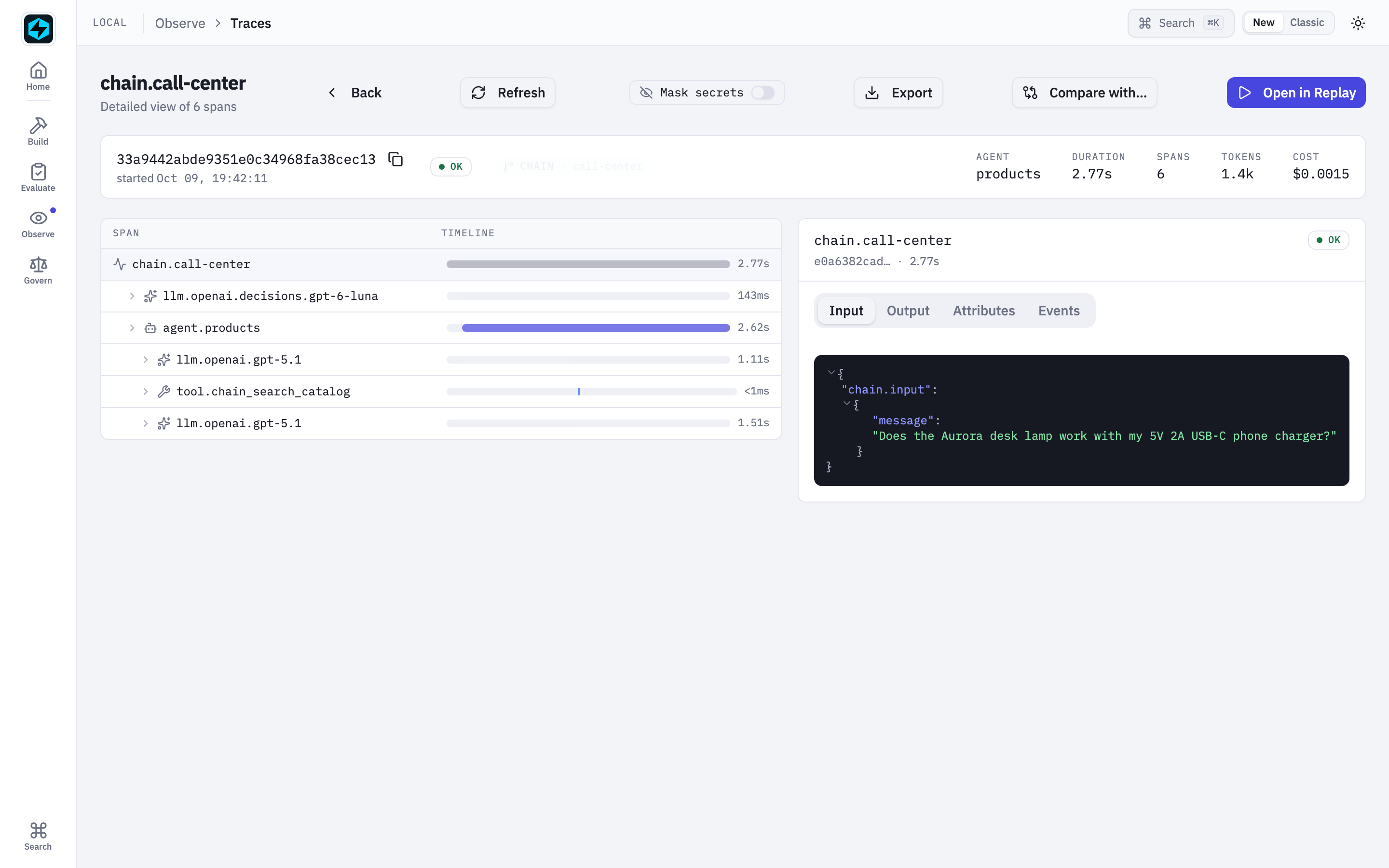

The Chain version

A chain.call-center trace has the same shape: the triage decision (llm.openai.decisions.gpt-6-luna), then only the queue it chose, here agent.products with its catalogue lookup.

Replayed offline

Example 105 reruns a decision-driven agent with determinism="recorded". Every span in the rerun, the chat turns and the Decisions call alike, carries replay.mode="recorded": the answers came from the trace, not the network.

What routing costs

Analytics → Cost breakdown → By model puts the Decisions API next to the chat models. Here 16 Decisions calls (every route and review) cost $0.000464 in total, against $0.0152 for the gpt-5.1 workers. The Decisions API bills input tokens only, so its output column is 0.
